MOTORIZED FORCE TEST STAND   CHATILLON DFS DIGITAL FORCE GAUGE
CAPACITIES TO: 500 lbf / 250 kgf / 2500 N
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITIES TO: 500 lbf / 250 kgf / 2500 N
  • MOTORIZED TEST STAND CONTROL
  • ADVANCED FIRMWARE FEATURES
  • BI-DIRECTIONAL RS232 OUTPUT
  • NEXYGEN GAUGE SOFTWARE
  • ACCURACY: ± 0.1%



Chatillon TCD

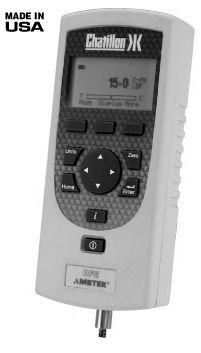

DFS Digital Force Gauge



The Advanced Chatillon® DFS Digital Force Gauge combines the basic versatility of its companion DFE with added firmware for use as the primary control of Chatillon motorized test stands. Mounted on the Chatillon TCM 201, TCD 200 or TCD 500, the DFS provides force set points, pass-fail limits, break detection, contact closure force, statistical calculations, force averaging, load comparison as well as instantaneous and peak detection.

The DFS features ± 0.1% accuracy to 500 lbf / 250 kgf / 2500 N . The high-resolution, dot-matrix LCD features large 0.5'' numerals, seven information text lines and a bar graph. Five force units are selectable: lbf, ozf, kgf, gf and N.

The Chatillon Nexygen Gauge Software is included with RS232 cable providing a means to perform and graph tests using a computer. Force versus time graphing and tabular results are used for reports with Excel, Word, Access, Powerpoint and Outlook.

CONSTRUCTION

  • Rubber keypad with dedicated and dynamic keys and navigation pod.
  • Full 4 1/2'' digit 0.5'' LCD display.
  • Split housing for upright display with shaft up or down.
  • American standard threads on load shaft and mounting holes.

OPERATION

  • Controls the TCM 201, TCD 200 and TCD 500 motorized test stands.
  • Advanced material testing software: break detection, first and ultimate peak,
    load averaging and comparisons, statistical calculations, etc.
  • Bi-directional RS232, Mitutoyo and ± 2 Vdc analog
  • Selectable baud rates: 4,800 to 115,600.
  • Peaks captured at selectable 8,200 or 5,000 samples/second.
  • Display update rate: configurable 2 Hz or 8 Hz.
  • Overload protection: 150% of full scale.
  • Selectable units of force: lbf, ozf, kgf, gf or N.

POWER REQUIREMENTS

  • Rechargeable NiMH battery for 30 hours of operation.
  • Continuous operation with 110 or 220 Vac adapter/charger.

ACCESSORIES

  • Included: NiMH battery, AC adapter/charger, six implements, case, manual, NIST Certificate of Calibration with data, Nexygen Gauge Software and RS-232 cable.

ACCURACY

  • Accurate to ± 0.1% of Full Scale, ± 1 Least Significant Digit

WEIGHT & DIMENSIONS

  • Instrument - 1.5 lb [0.7 kg], Shipping Weight: 3 lb [1.4 kg].
  • Dimensions - 7'' [180mm] H x 3'' [75mm] W x 1.6'' [40mm] D.

MODEL PRICE CAPACITY / GRADUATION
DFS-250G $1395.00 0.5 x 0.0001 lbf 8 x 0.002 ozf 0.25 x 0.0001 kgf 250 x 0.05 gf 2.5 x 0.0005 N
DFS-002 $1395.00 2 x 0.0002 lbf 32 x 0.005 ozf 1 x 0.0001 kgf 1000 x 0.1 gf 10 x 0.001 N
DFS-010 $1395.00 10 x 0.001 lbf 160 x 0.02 ozf 5 x 0.0005 kgf 5000 x 0.5 gf 50 x 0.005 N
DFS-025 $1395.00 25 x 0.002 lbf 400 x 0.05 ozf 10 x 0.001 kgf 10,000 x 1 gf 100 x 0.01 N
DFS-050 $1395.00 50 x 0.005 lbf 800 x 0.1 ozf 25 x 0.002 kgf 25,000 x 2 gf 250 x 0.02 N
DFS-100 $1395.00 100 x 0.01 lbf 1600 x 0.2 ozf 50 x 0.005 kgf 50,000 x 5 gf 500 x 0.05 N
DFS-200 $1395.00 200 x 0.02 lbf -- 100 x 0.01 kgf -- 1000 x 0.1 N
DFS-500 $1395.00 500 x 0.05 lbf -- 250 x 0.02 kgf -- 2500 x 0.2 N
* Each DFS includes Nexygen Gauge Software and RS-232 cable


  Prices and specifications are subject to change without notice. www.wagnerinstruments.com
