  FORCE ONE™ FDIX MULTI-CAPACITY DIGITAL FORCE GAUGE
CAPACITIES TO: 200 lbf / 100 kgf / 1000N
  • PLUG 'N PLAY FORCE CELL MODULES
  • TENSION & COMPRESSION
  • CAPACITIES TO: 200 lbf/100 kgf /1000 N
  • BI DIRECTIONAL RS232 OUTPUT
  • SELECTABLE PEAK FORCE SAMPLING
  • ACCURACY: ± 0.2% - Dedicated
  • ± 0.3% - Interchangeable

CONSTRUCTION

  • Patented Plug 'n Play with seven Force Cell Modules.
  • 5 digit, 0.5" LCD and 5 button keypad.
  • Split housing for upright display with shaft up or down.
  • Displays: LO BAT, T, C and PEAK.
  • American standard threads on load shaft and mounting holes.

OPERATION

  • Change Force Cell Module to change capacity.
  • Bi-Directional computer/printer RS232 output.
  • Selectable baud rates: 4800, 9600, 19200 or 38400.
  • Selectable units of force: lbf, kgf, N and ozf.
  • Selectable peak sampling: 100 or 1000 samples/second.

POWER REQUIREMENTS

  • Rechargeable 50 hour NiMH battery.
  • Continuous operation with AC adapter/charger.
  • Auto-off conserves battery power.

ACCESSORIES

  • NiMH battery, AC adapter/charger, hook and flat,
    case, manual and NIST Calibration Certificate.

ACCURACY

  • ± 0.2% of Full Scale - Dedicated.
  • ± 0.3% of Full Scale - Interchangeable.

WEIGHT & DIMENSIONS

  • 0.8 lb. [360 g] Shipping: 2 lb. [1 kg]
  • 2 3/4" [70 mm] W x 4" [100 mm] H x 1 1/4" [32 mm] D

Force One™ FDIX mounted on Wagner STK100 Spring Tester

The Unique Force One™ FDIX is a low cost digital force gage with many useful features beginning with interchangeable Plug 'n Play Force Cell Modules. Select any capacity from 2 to 200 pounds, attach it to the Force Display Module and start testing.

Two versions of FDIX are available
• Dedicated - Single Force Cell Module at ± 0.2% accuracy.
• Interchangeable - Multiple Force Cell Modules at ± 0.3% accuracy.

The basic FDIX consists of a Force Display Module (FDMIX) and a Force Cell Module (FCMI). Add other Force Cell Modules as needed to increase or decrease the FDIX Force Gage capacity. Changing Force Cell Modules changes capacity, accuracy and resolution.

Selectable Peak Sampling Rate FDIX primary function, measuring static and dynamic forces, is enhanced with keyboard selectable 100 or 1000/second peak sampling rates - 100/second for slow dynamic or static testing, 1000/second for high speed break testing.

Overload Protection - FDIX has built-in overload stops with strain gage and structural failure protection.

Bi-Directional RS232 Interface - Versatile bi-directional RS232 data transmission to and from a computer is provided with single data point or continuous data transmission initiated by FDIX or by computer.

Data storage is provided with a 500 data point memory for later recall and transmission to a computer.
  FORCE ONE™ FDIX PRICES
PLUG 'N PLAY FORCE GAGE FORCE CELL MODULES
Dedicated: 0.2% Accuracy
Interchangeable: 0.3% Accuracy

SELECTING A FORCE ONE™
FDIX FORCE GAGE SYSTEM

Customize an FDIX Force Gage to Suit
Your Needs:

  • Basic system consists of a Force Display Module and a Force Cell Module.

  • Add other Force Cell Modules as needed to increase or decrease capacity.

  • Changing Force Cell Modules changes capacity, accuracy and resolution to suit your requirements.

  • Switching Force Cell Modules is quick and easy and provides the ultimate in force gage economy.

TABLE1 FORCE ONE™ DIGITAL FORCE GAGE
MODEL
 PRICE FCMI*
MODEL		 PRICE CAPACITY / GRADUATION OVERLOAD
PROTECTION
TO		 LOADSHAFT
MOVEMENT
AT CAPACITY
FDIX 2 $650.00 FCMI 2 $350.00 2 x 0.002 lbf 32 x 0.04 ozf 1 x 0.001 kgf 10 x 0.01 N 25 lbf 0.015"
FDIX 5 $650.00 FCMI 5 $350.00 5 x 0.005 lbf 80 x 0.1 ozf 2.5 x 0.002 kgf 25 x 0.02 N 50 lbf 0.011"
FDIX 10 $650.00 FCMI 10 $350.00 10 x 0.01 lbf 160 x 0.2 ozf 5 x 0.005 kgf 50 x 0.05 N 100 lbf 0.007"
FDIX 25 $650.00 FCMI 25 $350.00 25 x 0.02 lbf 400 x 0.5 ozf 10 x 0.01 kgf 100 x 0.1 N 250 lbf 0.007"
FDIX 50 $650.00 FCMI 50 $350.00 50 x 0.05 lbf 800 x 1 ozf 25 x 0.02 kgf 250 x 0.2 N 250 lbf 0.007"
FDIX 100 $650.00 FCMI 100 $350.00 100 x 0.1 lbf 1600 x 2 ozf 50 x 0.05 kgf 500 x 0.5 N 250 lbf 0.007"
FDIX 200 $800.00 FCMI 200 $450.00 200 x 0.2 lbf 3200 x 4 ozf 100 x 0.1 kgf 1000 x 1 N 400 lbf 0.005"

ALL MODELS INCLUDE: Force Display Module (FDMIX), Force Cell Module (FCMI), battery, AC Adapter/Charger, flat head and hook
of appropriate capacity, case, manual and NIST Calibration Certificate.

* Optional Interchangeable Force Cell Modules - Interchangeable with original Force Cell Module of any FDIX Force Gage.

TABLE2 FORCE ONE™ OPTIONAL ACCESSORIES
FD/S-1 Steel Hook - Large (100 lbf) $20.00* FDIX/CA110 Cable RS232 IFDIX to PC $75.00
FD/B-1 Steel Hook - XL (200 lbf) $30.00* 15 - 1004 MESURgauge Force Testing Software $395.00
FD/S-2 Flat Head (5/8" diameter) $20.00* FDIX/KI Key Injector Software - PC Software Link $50.00
FD/S-3 Cone Point $20.00 FD/NMH NIMH Battery - 9V size $5.00*
FD/S-4 Chisel Head $20.00 FDI/AC110 AC Adapter - 110 Vac $25.00
FD/S-5 Vee Tip $20.00 FDI/AC220 AC Adapter - 220 Vac $40.00
FD/S-6 Extension Rod $20.00
FD/A-7 Hinged Hook - Small (20 lbf) $45.00 * Features rich force testing software - force vs. distance..
FD/S-7 Hinged Hook - Small (100 lbf) $45.00 ** Links data received at PC port to operational software, e.g., Excel, etc.
FD/HDL Aluminum Handles $95.00
FD/RT Rubber Tip $20.00
FD/CP2 2" Compression Plate (200 lbf) $25.00

* Flathead and appropriate hook included with FDIX.
* No charge when FDI is ordered with test stand.

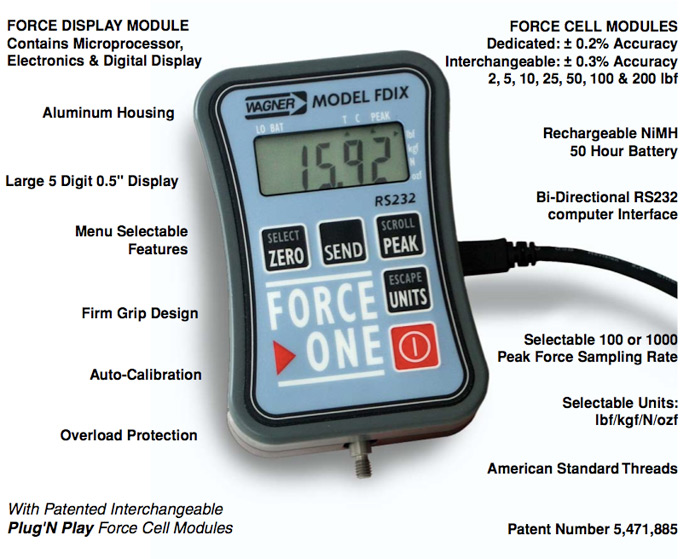

  FORCE ONE™ FDIX FEATURES
ADVANCED SIMPLICITY
WAGNER FDIX™ PLUG 'N PLAY
FORCE GAGE WITH RS232 OUTPUT

SELECTING A FORCE ONE™ FDIX FORCE GAGE SYSTEM

Customize a Force One™ Force Gage System to Suit Your Needs:
  • Basic system consists of a Force Display Module (FDMIX) and a Force Cell Module (FCMI).
  • Add other Force Cell Modules as needed to increase or decrease capacity.
  • Changing Force Cell Modules changes capacity, accuracy and resolution to suit your needs.
  • Switching Force Cell Modules is quick and easy and provides the ulitmate in economy.
fdix_080128_dd.pdf

  Prices and specifications are subject to change without notice. www.wagnerinstruments.com
