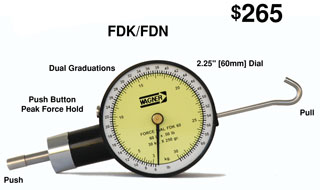

  FORCE DIAL™ FDK/FDN DIAL PUSH-PULL FORCE GAUGE
CAPACITIES TO 60 lbf/30 kgf/300 N



  • TENSION & COMPRESSION
  • CAPACITIES TO: 60 lbf/30 kgf/300 N
  • DUAL GRADUATIONS
  • PEAK FORCE HOLD
  • NIST CALIBRATION CERTIFICATE
  • ACCURACY: ± 1%

CONSTRUCTION

  • Large 2.25'' [60mm] dial.
  • Dual graduations: lbf/kgf or kgf/N.
  • Plastic housing, stainless steel plunger, steel spring and brass mechanism.
  • Full scale plunger deflection: 0.4'' [10mm].
  • Push button peak hold.
  • Sheet metal screws for handle or fixture mounting.
OPERATION
  • Tension and compression from opposite ends.
  • Peak readings retained - released by pushing button.
  • Tension hook attached thru hole in housing.
  • Pound/gram or Newton/gram on outer/inner dial.
  • Verify accuracy by suspending test weights on hook.
ACCESSORIES
  • Flat compression head, tension hook, extension rod, case, and manual.

OPTIONAL ACCESSORIES
  • Stainless steel handle, 7/16'' [11mm] rubber tip, pressure pad and NIST Calibration Certificate.

ACCURACY

  • ± 1% (1 graduation) over 2500 gf.
  • ± 2% (2 graduations) thru 2500 gf.



The unique FDK/FDN is a low cost dialpush-pull force gage designed for routine hand-held force testing. It offers basic features - peak force hold, dual lbf/kgf/N graduations and mounting holes - for tension and compression testing to 60 lbf/30 kgf/300 N.

The FDK / FDN features sixteen capacities with dual graduations in pound/gram, ounce/gram or Newton/gram models. Optional stainless steel handle provides stability and comfort for higher pull force testing and NIST Calibration Certificate is available.

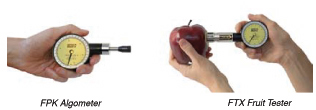

After 30 years, the Force Dial has served virtually all sectors of industrial force measurement, as well as fruit ripeness, therapeutic pain and ergonomic testing. The simplicity, low cost and compact portability of the FDK/FDN make is possible.


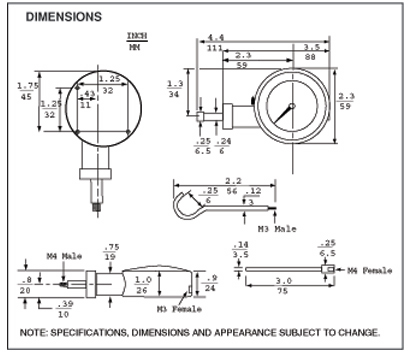

  FORCE DIAL™ FDK/FDN SPECIFICATIONS


ALL MODELS $210

DECIMAL POUND / GRAM MODELS

Model
Capacity / Graduation

FDK 2 2 lbf x 0.02 lbf
1000 gf x 10 gf
FDK 5 5 lbf x 0.05 lbf
2500 gf x 25 gf
FDK 10 10 lbf x 0.10 lbf
5 kgf x 50 gf
FDK 20 20 lbf x 0.25 lbf
10 kgf x 100 gf
FDK 30 30 lbf x 0.25 lbf
14 kgf x 100 gf
FDK 40 40 lbf x 0.50 lbf
20 kgf x 200 gf
FDK 60 60 lbf x 0.50 lbf
30 kgf x 250 gf


OUNCE / GRAM MODELS

Model
Capacity / Graduation

FDK 32 32 ozf x 1/4 ozf
1000 gf x 10 gf
FDK 80 5 lbf x 0.05 ozf
2500 gf x 25 gf
FDK 160 10 lbf x 0.10 ozf
5 kgf x 50 gf

NEWTON / GRAM MODELS

Model
Capacity / Graduation

FDN 10 10 N x 0.1 N
1000 gf x 10 gf
FDN 20 20 N x 0.25 N
2500 gf x 25 gf
FDN 50 50 N x 0.5 N
5 kgf x 50 gf
FDN 100 100 N x 1 N
10 kgf x 100 gf
FDN 200 200 N x 2 N
20 kgf x 200 gf
FDN 300 300 N x 2.5 N
30 kgf x 250 gf

ACCESSORIES

FDK/NIST NIST Calibration Certificate
$65
FDK/RTH Rubber Tip
$20
FDK/HDL Stainless Steel Handle
$30
FDK/CP58 Compression Plate - 5/8''
$10
FDK/M4-1032 Converts Gage to #10-32M
$10

NOTES
(1) Accuracy: +/- 2 Graduations (thru 2500gf)
+/- 1 Graduation (over 2500 gf)
(2) Optional NIST Certificates of Calibration are
available for the FDK/FDN Series.
(3) No zero - All graduations begin at 10% of full
capacity. The FDK/FDN Series is not intended for
use below 10% of capacity.




fdk_fdn_081112_dd
