  FORCE DIAL™ FDL PUSH-PULL FORCE GAUGE
CAPACITIES: 2 to 100 lbf



  • CAPACITIES TO 100 LBF / 50 KGF
  • TENSION & COMPRESSION
  • DUAL GRADUATIONS: lbf / kgf
  • PEAK FORCE HOLD
  • ADJUSTABLE ZERO
  • AMERICAN STANDARD THREADS
  • ACCURACY: ± 0.3% F.S.

MODEL CAPACITY / GRADUATION PRICE

FDL 10 10 x 0.1 lbf 5 x 0.25 kgf $430.00
FDL 20 20 x 0.2 lbf 10 x 0.1 kgf $430.00
FDL 40 40 x 0.25 lbf 20 x 0.2 kgf $430.00
FDL 60 60 x 0.5 lbf 30 x 0.25 kgf $430.00
FDL 100 100 x 1 lbf 50 x 0.5 kgf $430.00


FDL GAUGE ACCESSORIES

FD/HDL Handles $95.00
FD/RT Rubber Tip $20.00
FD/CP2TH Compression Plate - 2'' Dia. $25.00
FD/S-1 Steel Hook - Large (100lbf) $20.00*
FD/S-2 Flat Head $20.00*
FD/S-3 Cone Head $20.00
FD/S-4 Chisel Head $20.00
FD/S-5 Vee Tip $20.00
FD/S-6 Extension Rod $20.00
FD/A-7 Hinged Hook - Small (10lbf) $45.00
FD/S-7 Hinged Hook - Large (100lbf) $45.00
FD/A-8 Hinged Cradle - Small (10lbf) $45.00
FD/S-8 Hinged Cradle - Large (100lbf) $45.00

* All models include one hook & flat.

THE ONLY 100 POUND DIAL
FORCE GAUGE WITH ± 0.3% ACCURACY


The Wagner FDL features dual lbf/kgf graduations and a firm grip ergonomic design. The rugged FDL Dial Push-Pull Gage is available in five models from 10 through 100 pounds and an impressive ±0.3% accuracy.

The FDL Force Dial features American Standard threads on the load shaft and mounting holes and includes an NIST Certificate of Calibration.

The FDL mounts directly onto various test stands and includes two steel attachments; optional handles and a variety of gripping fixtures.


  FORCE DIAL™ FDL SPECIFICATIONS


FORCE TESTING TO 100 LBF

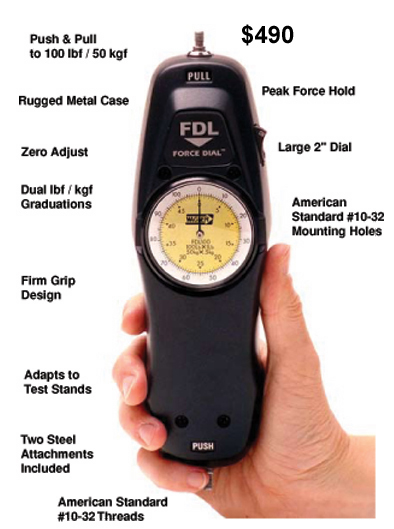

ERGONOMIC DESIGN: Contoured design for a comfortable firm grip.
DUAL GRADUATIONS: Dual lbf and kgf graduations.
PEAK FORCE HOLD: Convenient ON/OFF switch actuates peak force hold.
DIAL DISPLAY: Large 2'' diameter dial with precise dual graduations and sharp pointer.
ZERO ADJUST: Rotating dial bezel resets zero and adjusts for tare weights.
TEST STAND USE: Mounting holes are American Standard #10-32 threads.
ACCESSORIES: Hook and flat, case, manual and NIST Calibration Certificate.

Optional: handles, hinged hooks and cradle attachments, mounting adapters and gripping fixtures.
WARRANTY: One year limited warranty.
ACCURACY: ±0.3% of Full Scale. NIST Certificate of Calibration included.
WEIGHT: 1 1/2 lb [.7 kg]. Shipping weight: 3 lb [1.4 kg].

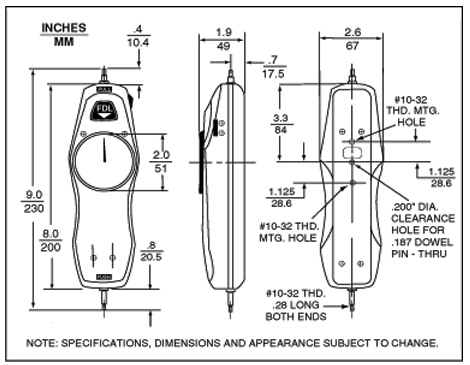

FDL

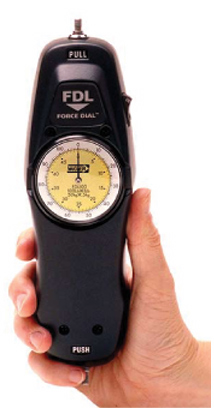

Push-pull force gage



Optional handles -
for testing over 10 pounds

fdl_071208_dl.pdf


  Prices and specifications are subject to change without notice. www.wagnerinstruments.com
 CALL TOLL FREE: 800-345-4188 Credit Cards
  Wagner Instruments • Greenwich CT • 203-698-9681 • Fax: 203-698-9696 • sales@wagnerinstruments.com
