  PUNCTURE TEST™ FPT SOFT MATERIALS
HARDNESS TESTER


ACCURATE HARDNESS TESTING REQUIRES:
  • ACCURATE FORCE READINGS
  • ACCURATE PENETRATION CONTROL
FEATURES:
  • NEEDLE PENETROMETER
  • ACCURATE DEPTH CONTROL
  • ACCURATE FORCE MEASUREMENT
  • HANDHELD OR TEST STAND
  • SOFT MATERIAL TESTING
  • Wallboard
  • Cardboard
  • Foamboard
  • Rubber
  • Plastic
  • Wood



ADVANCED DESIGN

The FPT offers improved accuracy by:

  • Automatically stopping penetration at the correct depth.
  • Controlling speed of penetration with a unique compression chamber providing resistance and slowing penetration.
  • Providing force gage accuracy verification with test weights.

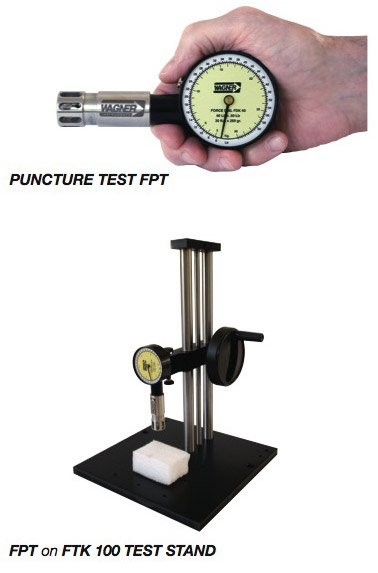

Puncture Tester

The FPT Puncture Tester is dedicated to quality control of soft materials testing using a needle penetrometer.

A stainless steel puncture module containing a thin sharp needle 1/16'' [1.6mm] is attached to a Wagner FDK Force Gage.

As the module is pressed against the test sample, the needle penetrates and the surrounding barrel indepentantly retracts, stopping penetration at 5/16'' [8 mm]. The force gage records and retains the peak force reading until released.

Accuracy through repeatability is further enhanced by the built-in compression chamber providing gentle resistance - back pressure - to the penetration. Controlling penetration speed eases the needle into the test sample preventing an abrupt penetration.

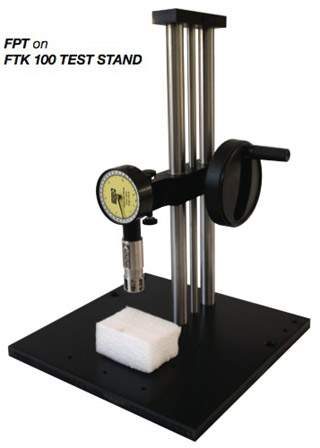

FTK 100 Test Stand

The Wagner FTK 100 Test Stand provides added control of hardness testing resulting in greater accuracy through repeatability.

In addition to handheld use, the FPT can be mounted on the FTK 100 Test Stand for a higher degree of accuracy through closer test control. The FTK 100 is lightweight and compact for portability and features lever or handwheel operation and a 10'' x 10'' platform.


  PUNCTURE TEST™ FPT SPECIFICATIONS

CONSTRUCTION:
The FPT combines the compact FDK Force Gage with the all stainless steel PTM Puncture Module. The PTM incorporates a return spring and a piston with open ports for flushing with water.

PEAK HOLD: Peak readings are held until the button is pressed.

GRADUATIONS: Dual graduations in pounds, grams and Newtons.

Accessories: Spare needle, verification hook, manual and case.

Size:
  Overall length: 5 inches [13 cm];
  Net weight: 6 Ounces [170 g]

Warranty: One year limited.

Accuracy: ± 2 Graduations (thru 2500gf)
± 1 Graduation (over 2500 gf)

OPERATION:
Simply press the FPT into the test sample with slow steady force against the gage resistance until the FPT piston stops automatically. The peak force reading is displayed on the force gage.

  PUNCTURE TEST™ FPT MODELS & PRICES





Test Stand Hardness Testing

The Wagner FTK 100 Test Stand provides added control of hardness testing with greater accuracy thru repeatability.

The FPT is mounted on the FTK 100 with a large 6'' x 10'' work area, 3'' horizontal clearance and 13'' vertical travel. Test samples up to 6'' in diameter can be tested on the FTK 100. The compact FTK 100 weighs only 10 pounds for easy portability.

ALL MODELS $380

DECIMAL POUND / GRAM MODELS

Model
Capacity / Graduation
 Price

FPT 2 2 lbf x 0.02 lbf
1000 gf x 10 gf
$380
FPT 5 5 lbf x 0.05 lbf
2500 gf x 25 gf
$380
FPT 10 10 lbf x 0.10 lbf
5 kgf x 50 gf
$380
FPT 20 20 lbf x 0.25 lbf
10 kgf x 100 gf
 $380
FPT 30 30 lbf x 0.25 lbf
14 kgf x 100 gf
$380
FPT 40 40 lbf x 0.50 lbf
20 kgf x 200 gf
$380
FPT 60 60 lbf x 0.50 lbf
30 kgf x 250 gf
$380


OUNCE / GRAM MODELS

Model
Capacity / Graduation
 Price

FPT 32 32 ozf x 1/4 ozf
1000 gf x 10 gf
$380
FPT 80 5 lbf x 1 ozf
2500 gf x 25 gf
$380
FPT 160 10 lbf x 2 ozf
5 kgf x 50 gf
$380

NEWTON / GRAM MODELS

Model
Capacity / Graduation
 Price

FPTN 10 10 N x 0.1 N
1000 gf x 10 gf
$380
FPTN 20 20 N x 0.25 N
2500 gf x 25 gf
$380
FPTN 50 50 N x 0.5 N
5 kgf x 50 gf
$380
FPTN 100 100 N x 1 N
10 kgf x 100 gf
$380
FPTN 200 200 N x 2 N
20 kgf x 200 gf
$380
FPTN 300 300 N x 2.5 N
30 kgf x 250 gf
$380

Included: FPT or FPTN Force Gage with PTM Module, spare needle, verification hook, manual and carrying case.

ACCESSORIES

FTK 100L Manual Test Stand - Lever
$490
FTK/100W Manual Test Stand - Handwheel
$590
FPT/NIST NIST Calibration Certificate
$65
FPT/NDL Needle, 13/16'' x 3/16'' [1.6 mm x 21 mm], Pkg of 5
$20

NOTES
(1) Accuracy: ± 2 Graduations (thru 2500gf)
± 1 Graduation (over 2500 gf)
(2) Optional NIST Certificates of Calibration are
available for the FDK/FDN Series.
(3) No zero - All graduations begin at 10% of full
capacity.
