  GRAM DIAL™ GD PRECISION GRAM GAUGE
CAPACITY: 3 TO 2000 GF
  • TENSION & COMPRESSION
  • CAPACITIES: 3 TO 2000 GF
  • ELEVEN MODELS
  • ROUND OR FLAT TIP
  • LOW CLEARANCE TESTING
  • PEAK FORCE HOLD
  • ACCURACY: ± 1 GRADUATION


Round Tip
Flat Tip

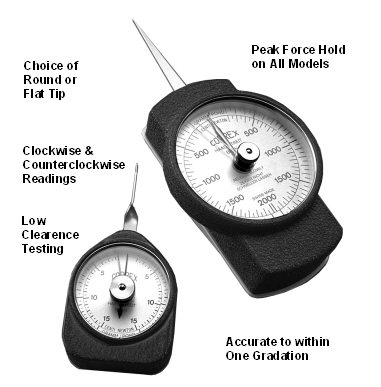

The Wagner / Correx Gram Dial GD Series is a rugged hand-held force gage for precise testing of tension and compression forces. The cantilever force arm measures in either direction. Available in eleven capacities with a choice of round or flat tips, the Gram Dial is ideally suited for a wide range of applications.
TIP CONFIGURATION: Flat (line contact) or round (point contact)
TENSION / COMPRESSION: Reads both clockwise and counterclockwise.
PEAK FORCE POINTER: Holds maximum force reading - avialable with most models.
RUGGED CONSTRUCTION: Small hole in flat tip permits accuracy checks with test weights.
TWO COMPACT DIAL SIZES: 1½" dial (thru 250 gf). 2 ½" dial (500 thru 2000 gf).
ACCURACY: Accurate to within one graduation.
LIGHTWEIGHT: 1½" dial - 4 oz. 2 ½" dial- 12 oz.

SMALL SIZE
Model
Round Tip*
Flat Tip*
 Capacity / Graduation Price
GD 3**
R
F
0.3 - 3 x 0.1 gf
$225.00
GD 6**
R
F
0.6 - 6 x 0.2 gf
 $225.00
GD 15
R
F
2 - 15 x 0.5 gf
 $225.00
GD 30
R
F
3 - 30 x 1 gf
 $225.00
GD 50
R
F
5 - 50 x 1 gf
 $225.00
GD 100
R
F
10 - 100 x 2 gf
 $225.00
GD 150
R
F
15 - 150 x 5 gf
 $225.00
GD 250
R
F
25 - 250 x 5 gf
 $225.00
LARGE SIZE
GD 500
R
F
50 - 500 x 10 gf
 $400.00
GD 1000
R
F
100 - 1000 x 20 gf
 $400.00
GD 2000
R
F
200 - 2000 x 50 gf
 $400.00
*Specify round or flat tip by adding "R" or "F" to the model number.
** Maximum reading pointer not available on GD 3 or GD 6.
gd_080306_ddLowRez.pdf

  Prices and specifications are subject to change without notice. www.wagnerinstruments.com
