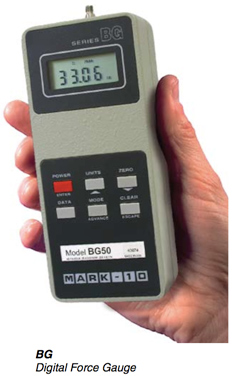

  MARK 10 MODEL BG DIGITAL FORCE GAUGE
CAPACITIES: .12 TO 500 lbf
Print
MARK 10 BG
  • TENSION & COMPRESSION
  • CAPACITY: 500 lbf / 250 kgf / 2500 N
  • ADVANCED FORCE TESTER
  • BI-DIRECTIONAL RS-232
  • SELECTABLE: lbf / kgf / N
  • PEAK FORCE HOLD
  • AVERAGING MODE
  • EXTERNAL TRIGGER MODE
  • FORCE SETPOINT OUTPUT
  • ACCURACY +/- 0.2%

The BG Digital Force Gauge provides advanced force measuring with added features including data outputs, computer and motorized test stand control and a wide range of capacities from 0.12 lbf to 500 lbf.

Advanced features include RS232, Mitutoyo and analog outputs, high/low force set points, force averaging over time and remote computer control of BG functions. When mounted on a motorized test stand, the BG can stop travel at selected force setpoints, prevent force gauge overload and provide Go/No-Go indication.

CONSTRUCTION

  • Compact lightweight aluminum housing.
  • Split housing permits upright display with shaft up or down.
  • 4 digit 0.3" LCD display and 6 button keypad
  • American standard load shaft and mounting threads

OPERATION

  • Peak sampling rate: 65/sec.
  • Tension and compression peaks held in memory.
  • Selectable units: lbf, kgf or N.
  • RS232, Mitutoyo, ±1 Vdc analog and setpoints on 9 pin connector.
  • Bi-directional RS232 with baud rates to 9600 for computer control of BG functions.
  • Averaging mode provides average force over time
  • External trigger mode permits data capture upon receipt of external signal.
  • Setpoint outputs GO/NO-GO and IN-RANGE indication.

POWER REQUIREMENTS

  • Continuous operation with 110 or 220 Vac adapter.
  • Rechargeable NiMH battery for 10 hours of use with 8 hour charge.
  • Audo-off conserves battery power.

ACCESSORIES

  • Includes: NiMH battery, AC adapter/charger, six attachments, case, manual and NIST Calibration Certificate.

ACCURACY

  • Accurate to &plusmin; 0.2% F.S. &plusmin; 1 least significant digit.

WEIGHT & DIMENSIONS

  • Weight: 1 lb. [.5 kg]
  • Dimensions: 6'' [152mm] H x 2.5'' [64mm] W x 1.5'' [38mm] D


MODEL CAPACITY/GRADUATION PRICE
BG 012
0.12 lbf x
0.00005 lbf
50 gf x
0.02 gf
0.5 N x
0.0002 N
$1145
BG 025
0.25 lbf x
0.0001 lbf
100 gf x
0.05 gf
1 N x
0.0005 N
$1145
BG 05
0.5 lbf x
0.0002 lbf
250 gf x
0.1 gf
2.5 N x
0.001 N
$1145
BG 2
2 lbf x
0.001 lbf
1 kgf x
0.0005 kgf
10 N x
0.005 N
$995
BG 5
5 lbf x
0.002 lbf
5 kgf x
0.001 kgf
25 N x
0.01 N
$995
BG 10
10 lbf x
0.005 lbf
5 kgf x
0.002 kgf
50 N x
0.02 N
$995
BG 20
20 lbf x
0.01 lbf
10 kgf x
0.005 kgf
100 N x
0.05 N
$995
BG 50
50 lbf x
0.02 lbf
250 kgf x
0.01 kgf
250 N x
0.1 N
$995
BG 100
100 lbf x
0.05 lbf
50 kgf x
0.02 kgf
500 N x
0.2 N
$995
BG 200
200 lbf x
0.1 lbf
100 kgf x
0.05 kgf
1000 N x
.5 N
$1145
BG 500
500 lbf x
0.2 lbf
250 kgf x
0.1 kgf
2500 N x
1 N
$1145
ACCESSORIES
09-1048A Cable, Serial, BG to PC (9 pin) $75*
FDIX/CA-USB Cable, RS232 to USB $35*
09-1090 Cable, set point, BG to Test Stand (9 pin) $145*
11-1022 Hi / Lo limits indicator $90*
* Includes cable, driver and manual on a CD; converts RS232 at serial port to USB.
FORCE TESTING SOFTWARE
15-1004 MESURgage Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**
* Feature rich force testing software- force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
