  MARK-10 M5 DIGITAL FORCE GAGE
CAPACITIES TO: 1000 lbf / 500 kgf / 5000 N
Buy Now
Print
Mark-10 logo

  • TENSION & COMPRESSION
  • CAPACITY: 1000 lbf / 500 kgf / 5000 N
  • USB/RS232/ANALOG/MITUTOYO
  • MESURLITE DATA SORTWARE
  • 1000 DATA POINT MEMORY
  • FULL TEST STAND CAPABILITY
  • ACCURACY: ± 0.1% of Full Scale

Mark-10 M5 product photograph

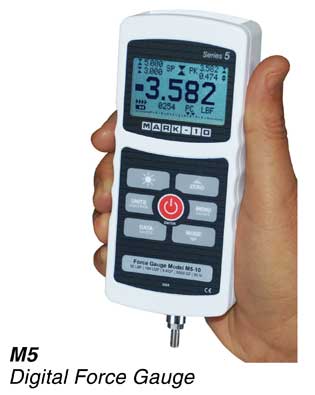

Made in America, the M5 Digital Force Gauge is the force sensor of the advanced ESM 301 Motorized Force Test Stand with a large backlit graphics liquid crystal display and simple menu navigation.

FEATURES

  • Large graphic liquid crystal display of:
    • Primary force reading - 6 digit
    • Peak force readings - maximum tension & compression
    • Set point force - programmed high & low settings
    • Load bar - visual analog indicator of applied force
  • Complete computer interface outputs - USB / RS232 / Analog / Mitutoyo.
  • High speed USB & RS232 to 115, 200 baud.
  • Analog 1 Vdc output for instantaneous control of external devices.
  • MESURlite data collection software and USB cable included.
  • 1000 data point storage in memory with output to PC.
  • Statistical analysis - minimum, maximum, mean & standard deviation.
  • 7000 Hz peak sampling of rapid occurring events.
  • Overload protection for motorized test stand.
  • Programmable force set points for pass-fail testing and external triggering.
  • Averaging mode - calculates average force over time.
  • External trigger - records activation force of switch closure.

CONSTRUCTION

  • Large backlit 6 digit graphic display.
  • American standard load shaft and mounting threads.
  • Reversible load shaft—up or down—maintains upright keyboard.
  • 150% of capacity overload protection.

POWER REQUIREMENTS

  • Continuous operation with 110 or 220 Vac power adapter.
  • Rechargeable NiMH battery for up to 24 hours continuous use.

ACCURACY

  • Accurate to ± 0.1% of full scale ± 1 least significant digit.

WEIGHT & DIMENSIONS

  • 1 lb. [0.5 kg]
  • 6" [152 mm] H x 2.75" [70 mm] W x 1.8" [47 mm] D
MODEL PRICE CAPACITY/GRADUATION
M5 -012 $1245 0.12 x 0.00002 lbf 2 x 0.0005 ozf 50 x 0.01 gf 0.5 x 0.0001 N 500 x 0.1 mN
M5 -025 $1245 0.25 x 0.00005 lbf 4 x 0.001 ozf 100 x 0.02 gf 1 x 0.0002 N 1000 x 0.2 mN
M5 -05 $1245 0.5 x 0.0001 lbf 8 x 0.002 ozf 250 x 0.05 gf 2.5 x 0.0005 N 2500 x 0.5 mN
M5 -2 $1095 2 x 0.0005 lbf 32 x 0.01 ozf 1 x 0.0002 kgf 10 x 0.002 N
M5 -5 $1095 5 x 0.001 lbf 80 x 0.02 ozf 2.5 x 0.0005 kgf 25 x 0.005 N
M5 -10 $1095 10 x 0.002 lbf 160 x 0.05 ozf 5 x 0.001 kgf 50 x 0.01 N
M5 -20 $1095 20 x .005 lbf 320 x 0.1 ozf 10 x 0.002 kgf 100 x 0.02 N
M5 -50 $1095 50 x 0.01 lbf 800 x 0.2 ozf 25 x 0.005 kgf 250 x 0.05 N
M5 -100 $1095 100 x 0.02 lbf 1600 x 0.5 ozf 50 x 0.01 kgf 500 x 0.1 N
M5 -200 $1245 200 x 0.05 lbf 3200 x 1 ozf 100 x 0.02 kgf 1000 x 0.2 N 1 x 0.0002 kN
M5 -500 $1245 500 x 0.1 lbf 8000 x 2 ozf 250 x 0.05 kgf 2500 x 0.5 N 2.5 x 0.0005 kN
M5 -1000 $1495 1000 x 0.5 lbf 16000 x 5 ozf 500 x 0.2 kgf 5000 x 2 N 5 x 0.002 kN
MODEL CABLES PRICE
09-1162 Cable, Multi-Function, M5 to Test Stand Controller $125
09-1163 Cable, RS232, M5 to PC, 9 pin $75
09-1164 Cable, Mitutoyo, M5 to SPC Printer $75
09-1165 Cable, USB, M5 to PC $30*
09-1166 Cable, Analog, M5 to Application $75
* M5 includes USB cable, driver & MESURlite data software on CD.
MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
* Feature rich force testing software - force vs. distance analysis.
NOTE:1) MESURgauge DEMO download available at:
www.mark-10.com
2)MESURlite download available at: www.mark-10.com
m5_150115_dd
