  FORCE TEST™ FTK100 COMPACT FORCE TEST STAND
CAPACITY: 100 lbf / 50 kgf / 500 N
Buy Now
Print Manual
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 100 lbf / 50 kgf / 500 N
  • 10" or 14" VERTICAL TRAVEL
  • LARGE 10" X 10" PLATFORM
  • LEVER OR HANDWHEEL
  • RIGHT OR LEFT HAND DRIVE

Made in America, the FTK 100 Force Test Stand provides low cost manual tension and compression testing to 100 lbf / 50 kgf. It features lever or handwheel elevating mechanism and accomodates digital or dial force gages.

The FTK 100 is specifically designed for use with either the FDIX Digital Force Gage or the FDK Dial Force Gage. When used with the FDIX, computer interface and various useful software features are available.

The 10" x 10" platform provides stability and a large
6" x 10" testing area with 3" horizontal clearance and
10" or 14" vertical travel.

The FTK 100 elevating mechanism locks in position with a knurled head screw and right or left hand operation is available by moving the lever or handwheel to either side. A grid of nine #10-32 mounting holes are provided on the 6" x 10" test area.

The Force Test™ FTK 100 is also available as the STK100 Compact Digital Spring Tester.

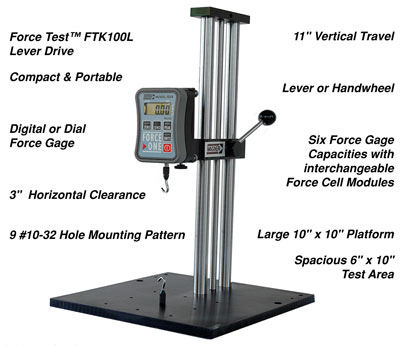

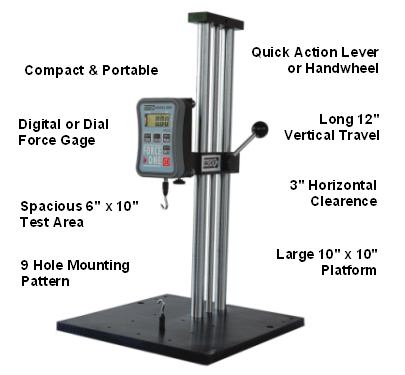

FTK
Force Test™ FTK100W
Handwheel Drive

 FTK

CONSTRUCTION
  • Large 10" x 10" aluminum platform; 6" x 10" test area.
  • Grid of nine #10-32 mounting holes are provided on the platform.
  • Steel guide posts with teflon coated bushings.
  • Maximum vertical clearance is approximately 10" or 14".
  • Maximum vertical gage travel is approximately 10" or 14".
  • Maximum horizontal clearance from guide posts is 3".
OPERATION
  • Tension or compression with lever or handwheel.
  • Compression testing with force gage platen. Tension testing with 2 hooks.
  • Handwheel or lever provide 1" travel for each 360° rotation.
ACCESSORIES
  • Included: Tension hook; additional hook & platen with force gage.
WEIGHT & DIMENSIONS
  • Short Column: 10 pounds [4.5 kg]
  • Long Column: 12 pounds [5.5 kg]
  • Short Column:
    13" [330 mm] H x 10" [255 mm] W x 10" [255 mm] D
  • Long Column:
    18" [430 mm] H x 10" [255 mm] W x 10" [255 mm] D
MODEL DESCRIPTION PRICE
FTK100L/10T Manual Test Stand - Lever/10" Travel $525
FTK100W/10T Manual Test Stand - Handwheel/10" Travel $565
FTK100L/14T Manual Test Stand - Lever/14" Travel $550
FTK100W/14T Manual Test Stand - Handwheel/14" Travel $590
FDK Wagner FDK Dial Force Gage - 2 to 60 lbf $225*
FDIX Wagner FDIX Digital Force Gage - 2 to 100 lbf $650*
* Refer to the FDIX and FDK pages for details on force gages.
MODEL ACCESSORIES PRICE
FTK/FDK FDK Force Gage Mounting Adapter $35**
FTK/FDI FDIX Force Gage Mounting Adapter $35**
FTK/DGI Digital Travel Indicator Kit - 1" x .0005" $290***
** Included when gage is ordered with test stand.
***Not recommended for use with FDK Force Gage
Note: FDIX Force Gage has computer output. FTK/DGI does not.
ftk100_110918_dd

  Prices and specifications are subject to change without notice. www.wagnerinstruments.com
 CALL TOLL FREE: 800-345-4188 Credit Cards
  Wagner Instruments • Greenwich CT • 203-698-9681 • Fax: 203-698-9696 • sales@wagnerinstruments.com
