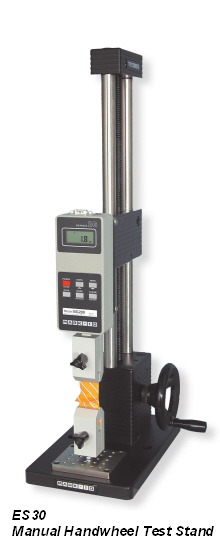

  MARK 10 ES30 MANUAL FORCE TEST STAND
CAPACITY: 200 lbf / 100 kgf / 1000 N
Buy Now
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 200 lbf /100 kgf /1000 N
  • DIGITAL FORCE & TRAVEL DISPLAY
  • PRECISION HANDWHEEL DRIVE
  • FORCE TESTING SOFTWARE
  • ECONOMICAL PRICE

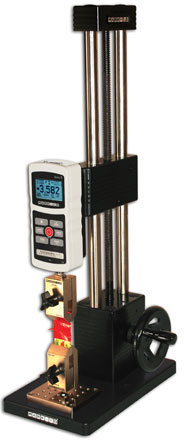

Made in America, the ES 30 provides tension and compression testing to 200 lbf / 100 kgf / 1000 N with precise handwheel and worm drive elevating mechanism for gradual repeatable force application.

The ES30 is extremely useful for spring testing - see the ES30ST catalog page.

Force data is displayed by a selection of digital force gauges - basic and advanced - providing computer output and many other features.

Travel data is displayed by a digital travel display with computer output.

MESURgauge force testing software provides easy set up and user friendly data logging and graphing of force vs. distance.

CONSTRUCTION

  • Stainless steel columns and handwheel worm drive.
  • Column length of 22'' [560 mm], other lengths available.
  • Removeable base plate with pattern of 25 #10-32 threaded holes.
  • Maximum vertical clearance: approx. 14'' [355 mm] depending on gauge.
  • Maximum vertical travel 13'' [330 mm].
  • Maximum horizontal clearance 3'' [75 mm].
  • Travel rate: 0.05'' [1.3 mm] per handwheel revolution.

OPERATION

  • Precise handwheel tension and compression testing.
  • Compression testing with 2'' [50 mm] diameter plate.
  • Tension testing with force gauge and test stand hooks.

ACCESSORIES

  • 2'' [50 mm] diameter compression platen, small and large hooks, force gauge mounting and tool kit.

WEIGHT & DIMENSIONS

  • 17 lb [8 kg].
  • 22'' [560 mm] H x 10'' [255 mm] W x 5'' [150 mm] D.

MODEL DESCRIPTION PRICE
ES 30 Manual Test Stand - 200 lbf / 100 kgf / 1000N $1175
ESM001 Digital Travel Display - 6'' x 0.0005'' [150 mm x 0.01 mm] $750
MRS100A Communications Adapter - ESM001 to PC $265

MODEL FORCE GAUGES PRICE
M5-XXX Mark 10 Digital Force Gauge, 2-100 lbf/1 - 50 kgf/10 - 500 N $1095*
M5-200 Mark 10 Digital Force Gauge, 200 lbf/100 kgf/1000N $1245*
09 - 1163 Cable, RS232, M5 to PC $75
09 - 1165 Cable, USB, M5 to PC - Replacement $30**
FDIX XXX Wagner Digital Force Gauge, 2-100 lbf/1 - 50 kgf/10 - 500 N $750*
FDIX 200 Wagner Digital Force Gauge, 200 lbf/100 kgf/1000 N $995*
FDIX/CA110 Cable, RS232, FDIX to PC, 9 pin $75
FDIX/CA-USB Cable, RS232 to USB $35***

* Refer to force gauge pages for model numbers and specifications.
** 09-1165 Cable included with all M5 Force Gauges.
*** Includes cable, driver and manual on a CD; converts RS232 to USB.
NOTE: FDIX/USB computer operation requires FDIX/CA110 and FDIX/CA-USB.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
 FDIX/KI Key Injector Software - PC Software Link  $50**

* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
es30_150115_dd
