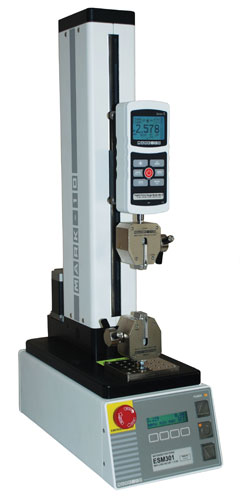

Mark-10 ESM301 Motorized Force Test Stand

  • TENSION & COMPRESSION
  • CAPACITY: 300 lbf /150 kgf /1500 N
  • CUSTOMIZED CONFIGURATION
  • DIGITAL FORCE & TRAVEL DISPLAY
  • OPTIONAL 11.5" or 18" TRAVEL
  • MEASURgauge TESTING SOFTWARE

Model ESM301 - Motorized Force Test Stand
with M5 Digital Force Gauge.

Made in America, the ESM301 provides tension and compression testing to 300 lbf / 150 kgf / 1500 N with many optional features for user selection.

Force Data is displayed by a wide selection of digital force gauges providing USB/RS232 computer data, overload protection and force set points.

Travel Data is displayed on the front panel with RS232 computer data available for data logging and force vs. distance graphing with MESURgauge Software.

  • ESM 301 BSC - Basic ESM 301 with standard features and option selection.
  • ESM 301 CPT - Complete with all Controller Options.

Standard Features - Included with all ESM301:

  • UP, DOWN & STOP display and emergency stop button.
  • Selectable speed units - in/min & mm/min.
  • Speed Range: 0.5 - 13 in/min [13 - 330 mm/min] standard; others available.
  • Stepper motor drive for 0% speed variation under load.
  • Integral travel limit switches with added durability.

Controller Options - For initial selection or added later by field activation:

  • Travel Display - The integrated linear scale travel sensor eliminates backlash and non-linearity with front panel display and RS232 data output.
  • Computer Control - Bi-directional RS232 data transmission to and from a PC controls ESM301 from computer keyboard.
  • Programmable Travel Limits - Force gauge stops at or cycles between programmed upper and lower limits.
  • Overload Protection - By adding the 09-1143 Multi-Function Cable, the ESM301 will stop at the force level or % of force gauge capacity specified.
  • Auto-Return - Force gauge travels to limit switch or programmed limit, stops and reverses at full speed to opposite limit.
  • Cycling/Dwell Time - Same as Auto-Return, but with up to 100,000 cycles and dwell between cycles to 10,000 seconds.
  • Programmable Buttons - Selectable up/down movement controls:
    • Continuous until stop is pressed.
    • Movement only on command.
    • Momentary or maintained movement.
  • Independent Up/Down Speeds - Different or same up/down speeds.
  • Extended Speed Range - Adds low and high to standard range:
    • Low: 0.02 - 13 in/min [0.5 - 330 mm/min]
    • High: 0.5 - 45 in/min [13 - 1100 mm/min]

MODEL DESCRIPTION PRICE
ESM301-BSC Motorized Test Stand - 11.5" Basic $2695*
ESM301L-BSC Motorized Test Stand - 18" Basic $2995*
ESM301-CPT Motorized Test Stand - 11.5" Complete $5690**
ESM301L-CPT Motorized Test Stand - 18" Complete $6140**
09-1162 Cable, Multi-Function - Force Gauge to ESM301 $125
09-1056 Cable, Serial RS232 - ESM301 to PC $30
RSU100 Cable USB Adapter - RS232 to USB to PC $125
15-1004 MESURgauge Force Testing Software $495
ESM301-002 Column Extension - 6", 12" or 24" $275/$325/$375

* Basic - Includes ESM301 with standard speed and option selection.
** Complete - Includes ESM301, all Cables and all Controller Options.
  • USB computer operation requires 09-1056 and RSU100 cables.
  • ESM301 requires M5 Force Gauge—see next page.

MODEL CONTROLLER OPTIONS PRICE
ESM301-001 Travel Display & RS232 Output $750
ESM301L-001 Travel Display & RS232 Output $950
EF010 Bi-directional RS232 Computer Control $950
EF011 Programmable Travel Set Points $550
EF012 Overload Protection $250
EF013 Auto Return $175
EF014 Cycling / Dwell Time $250
EF015 Programmable Button Operation $150
EF016 Independent Up / Down Speeds $150
EF017 Extended Speed Range - Low 0.02 - 13 in/min $175
EF018 Extended Speed Range - High 0.5 - 45 in/min $175

  • Basic - Options can be selected with initial order or added later by activation code.
  • Complete - All options are included.
esm301_150115_dd

  MARK 10 ESM301 SPECIFICATIONS & PRICES

Construction

  • Stainless steel columns and cast aluminum base.
  • Column length: 20" [508 mm] or 27" [686 mm].
  • Stepper motor for constant speed under load.
  • Removable base plate with 25 #10-32 holes.
  • Vertical Clearance:
    • ESM301: 2" - 14" [102 - 356 mm]
    • ESM301L: 2" - 20" [102 - 508 mm]
  • Maximum Travel:
    • ESM301: 11.5" [292 mm]
    • ESM301L: 18" [457 mm]
  • Horizontal Clearance: 3" [76 mm].
  • Speed range: 0.5 - 13 in/min [13 - 330 mm/min]
    standard; others available.

Power

  • Universal input: 80 - 240 Vac, 50 - 60 Hz.

Accessories

  • 2" compression plate, small and medium hook, extension rod, force gauge mounting and tool kit.

Operation

  • Load capacity: 300 lbf to 24 in/min [610 mm/min]
    200 lbf over 24 in/min [610 mm/min]
  • 3 speed ranges.
  • Up/Down at standard or selectable speeds.
  • Auto-return.
  • Selectable movement controls.
  • Cycling between force set points, travel limits or limit switches.
  • Overload protection of digital force gauge.
  • Computer control.

Accuracy

  • Speed setting: ± 0.2% - constant speed under load.
  • Limit switch repeatability: 0.001 in [0.03 mm].
  • Speed variation under load: ± 0%.

Weight & Dimensions

  • ESM301: 35 lb. [16 kg]
  • ESM301L: 40 lb. [18 kg]
  • ESM301: 25" [635 mm] H x 6.5" [165 mm] W x 13" [330 mm] D
  • ESM301L: 32" [813 mm] H x 6.5" [165 mm] W x 13" [330 mm] D

ESM DIGITAL FORCE GAUGE MODEL CAPACITY/GRADUATION PRICE
M5-012 0.12 x 0.00002 lbf 50 x 0.01 gf 0.5 x 0.0001 N $1245
M5-025 0.25 x 0.00005 lbf 100 x 0.02 gf 1 x 0.0002 N $1245
M5-05 0.5 x 0.0001 lbf 250 x 0.05 gf 2.5 x 0.0005 N $1245
M5-2 2 x 0.0005 lbf 1 x 0.0002 kgf 10 x 0.002 N $1095
M5-5 5 x 0.001 lbf 2.5 x 0.0005 kgf 25 x 0.005 N $1095
M5-10 10 x 0.002 lbf 5 x 0.001 kgf 50 x 0.01 N $1095
M5-20 20 x 0.005 lbf 10 x 0.002 kgf 100 x 0.02 N $1095
M5-50 50 x 0.01 lbf 25 x 0.05 kgf 250 x 0.05 N $1095
M5-100 100 x 0.02 lbf 50 x 0.01 kgf 500 x 0.1 N $1095
M5-200 200 x 0.05 lbf 100 x 0.02 kgf 1000 x 0.2 N $1245
M5-500 500 x 0.1 lbf 250 x 0.05 kgf 2500 x 0.5 N $1245*
* Provides 300 lbf capability, overload protection is recommended -
see 09-1143 Multi-Function Cable.
Force gauge mounting is provided for M5 to ESM301.
MESURgauge - Force vs. Distance Testing Software

MESURgauge is an innovative force testing software providing easy set-up and extremely user friendly data logging and graphing of force vs. distance. It is particularly useful for tensile testing, spring testing and many other applications.

MESURgauge captures RS232 data from force and digital travel gauges and displays it in tabular and graphical format. Force data is graphed versus time or distance with analysis of test results: statistical calculations, data export to Excel, custom reports and pass/fail indicators.

MESURgauge provides customized test set-ups and sequences and programs test start and stop for force, time, distance and sample break.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**

* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
esm_150115_dd
