  MARK 10 ESM MOTORIZED FORCE TEST STAND
CAPACITIY: 200 lbf / 100 kgf / 1000 N
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 200 lbf / 100 kgf / 1000 N
  • DIGITAL FORCE & TRAVEL DISPLAY
  • STEPPER MOTOR DRIVE
  • CONSTANT SPEED UNDER LOAD
  • OVERLOAD PROTECTION
  • ECONOMICAL PRICE: $2300

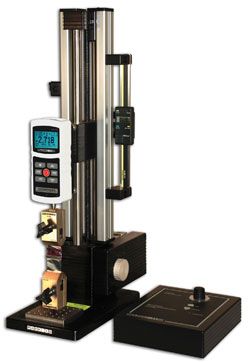

Model ESM - Motorized Force Test Stand

Made in America, the ESM provides tension and compression testing to 200 lbf / 100 kgf / 1000 N with precision stepper motor preventing speed variation under load for excellent test repeatability.

Force data is displayed by digital force gauges with computer output and many other features.

OPTIONS INCLUDE:

  • Digital Travel Display - 6'' [152 mm] travel, 0.0005 [0.01 mm] resolution with computer interface for automated data collection.
  • Travel Limit Switch Kit - Set of adjustable upper and lower limit switches with solid state control, repeatable to within 0.001'' [0.03 mm].
  • Force Set Point Cable - Stops travel at high and low force set points; programmable at force gauge.

CONSTRUCTION

  • Stainless steel columns and stepper motor drive.
  • Column length of 22'' [560 mm], other lengths available.
  • Removeable base plate with pattern of 25 #10-32 threaded holes.
  • Manual fine adjustment knob for set-up positioning.
  • Maximum vertical clearance: approx. 14'' [355 mm] depending on gauge.
  • Maximum vertical travel 13'' [330 mm].
  • Maximum horizontal clearance 3'' [75 mm].
  • Speed range: 0.5 - 13 in/min [13 - 330 mm/min].

OPERATION

  • Remote console for up/down and variable speed control.
  • Stepper motor for no speed variation under load.
  • Compression testing with 2'' [50 mm] diameter plate.
  • Tension testing with force gauge and test stand hooks.
  • Force gauge overload protection with set point cable.

ACCESSORIES

  • Small and large hooks, 2'' [50 mm] diameter compression plate, force gauge mounting and tool kit.

WEIGHT & DIMENSIONS

  • 17 lb [8 kg].
  • 22'' [560 mm] H x 10'' [255 mm] W x 6'' [150 mm] D.

MODEL DESCRIPTION PRICE
ESM Motorized Test Stand - 200 lbf / 100 kgf / 1000 N $2300
ESM001 Digital Travel Display - 6'' x 0.0005'' [150 mm x 0.01 mm] $750
MRS100A Communication Adapter - ESM001 to PC $265*
ESM002 Travel Limit Switch Kit - Upper/Lower $450
09-1090 Cable, Force Set Point - M5 to ESM $145
11-1042 Overload Protection Module, M5 to ESM $195
* Includes 09-1066, Cable, ESM001 to MRS100A.
MODEL DESCRIPTION PRICE
M5-XXX Mark 10 Digital Force Gauge 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N $995
M5-200 Mark 10 Digital Force Gauge 200 lbf / 100 kgf / 1000 N $1145
09-1048A Cable, RS232, M5 to PC $75
FDIX/CA-USB Cable, RS232 to USB $35*
* Refer to force gauge pages for model numbers and specifications.
** Includes cable, driver and manual on a CD; converts RS232 to USB.
MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**
* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
NOTE: USB computer operation requires both RS232 and USB cables.
