  MARK 10 TSA MANUAL LEVER TEST STAND
CAPACITIY: 750 lbf / 375 kgf / 3750 N
Buy Now
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 750 lbf / 375 kgf / 3750 N
  • QUICK ACTION LEVER DRIVE
  • DIGITAL FORCE & TRAVEL DISPLAY
  • PRECISION RACK & PINION
  • ADJUSTABLE TRAVEL STOPS
  • HORIZONTAL VERSION AVAILABLE
  • ECONOMICAL PRICE: $995

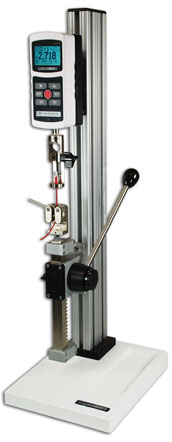

Model TSA - Manual Lever Test Stand

Made in America, the TSA provides tension and compression testing to 750 lbf / 375 kgf / 3750 N with a quick action lever and rack and pinion elevating mechanism. The TSA includes adjustable travel stops and a low force friction brake. Adjustable wear plates maintain smooth precise motion.

Force data is displayed by a selection of digital force gauges - basic and advanced - providing computer output and many other features.

Travel data is displayed by a digital travel display with computer and SPC printer output.

MESURgauge force testing software provides easy set up and user friendly data logging and graphing of force vs. distance for spring testing.

CONSTRUCTION

  • Extruded aluminum column and lever/rack and pinion drive.
  • Column length of 25" [655 mm] is standard, other lengths available.
  • Adjustable upper and lower travel stops.
  • Low force friction brake holds ram in position.
  • Maximum vertical clearance: Approx. 10" [254 mm] depending on gauge.
  • Maximum vertical travel: 3.75" [95 mm] with stops: 6" [150 mm] no stops.
  • Maximum horizontal clearance: 3'' [76 mm].
  • Travel rate: 3'' [76 mm] per lever revolution.

OPERATION

  • Precise rack and pinion tension and compression testing.
  • Compression testing with 2'' [51 mm] diameter plate.
  • Tension testing with force gauge and test stand hook.

ACCESSORIES

  • Travel stops, 2" [51 mm] diameter compression plate, medium and large hooks, force gauge mounting and tool kit.

WEIGHT & DIMENSIONS

  • 16 lb [7 kg].
  • 25" [655 mm] H x 6" [150 mm] W x 7" [180 mm] D.

MODEL DESCRIPTION PRICE
TSA750 Vertical Test Stand - 750 / 375 kgf / 3750 N $995
TSA001 Digital Travel Display - 6" X 0.0005" [150 mm x 0.01 mm] $650
MRS100A Communication Adapter - TSA001 to PC $265
TSA002 Horizontal / Wall Mounting Kit for TSA $150

MODEL FORCE GAUGES PRICE
M Series All Digital Force Gauges M3 / M4 / M5 / M7 *
09 - 1163 Cable, RS232, M5 to PC $75
09 - 1165 Cable, USB, M5 to PC - Replacement $30**
09-1048A Cable, RS232, M5 to PC $75
RSU100 Cable, RS232 to USB $125***

* Refer to force gauge pages for model numbers and specifications.
** 09-1165 Cable included with all M5 Force Gauges.
*** Includes cable, driver and manual on a CD; converts RS232 to USB.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**

* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
