  MARK 10 TSB MANUAL FORCE TEST STAND
CAPACITIY: 100 lbf / 50 kgf / 500 N
Buy Now
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 100 lbf / 50 kgf / 500 N
  • QUICK ACTION LEVER DRIVE
  • DIGITAL FORCE & TRAVEL DISPLAY
  • PRECISION RACK & PINION
  • ADJUSTABLE TRAVEL STOPS
  • HORIZONTAL VERSION AVAILABLE
  • ECONOMICAL PRICE: $795

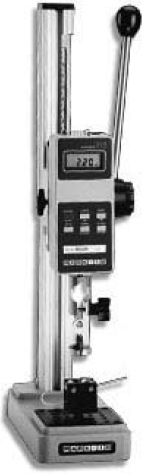

Model TSB - Manual Lever Test Stand

Made in America, the TSB provides tension and compression testing to 100 lbf / 50 kgf / 500 N with quick action lever and rack and pinion elevating mechanism. The TSB features optional travel stops and digital travel display.

Force data is displayed by a selection of digital force gauges - basic and advanced - providing computer output and many other features.

Travel data is displayed by a digital travel display with computer and SPC printer output.

MESURgauge force testing software provides easy set up and user friendly data logging and graphing of force vs. distance for spring testing.

CONSTRUCTION

  • Extruded aluminum column and lever/rack and pinion drive.
  • Column length of 17" [430 mm] is standard, other lengths available.
  • Removable base plate with pattern of 25 #10-32 threaded holes.
  • Maximum vertical clearance: Approx. 12" [300 mm] depending on gauge.
  • Maximum vertical travel: 2.75" [70 mm] with stops: 6" [150 mm] no stops.
  • Maximum horizontal clearance: 8.5'' [215 mm].
  • Travel rate: 3'' [75 mm] per lever revolution.

OPERATION

  • Precise rack and pinion tension and compression testing.
  • Compression testing with 2'' [50 mm] diameter plate.
  • Tension testing with force gauge and test stand hook.

ACCESSORIES

  • Force gauge mounting for M5 or FDIX.

WEIGHT & DIMENSIONS

  • 12 lb [6 kg].
  • 19" [490 mm] H x 4" [100 mm] W x 8.5" [215 mm] D.

MODEL DESCRIPTION PRICE
TSB Vertical Test Stand - 100 lbf / 50 kgf / 500 N Capacity $795
TSB001 Digital Travel Display - 6" X 0.0005" [150 mm x 0.01 mm] $600
MRS100A Communication Adapter - TSB001 to PC $265
TSB003 Travel Stops - Upper/Lower $95

MODEL FORCE GAUGES PRICE
M4-XXX Mark 10 Digital Force Gauge 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N $845*
M5-XXX Mark 10 Digital Force Gauge 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N $1095*
09 - 1163 Cable, RS232, M5 to PC $75
09 - 1165 Cable, USB, M5 to PC - Replacement $30**
FDIX XXX Wagner Digital Force Gauge - 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N $750*
FDIX/CA110 Cable, RS232, FDIX to PC, 9 pin $75
FDIX/CA-USB Cable, RS232 to USB $35***

* Refer to force gauge pages for model numbers and specifications.
** 09-1165 Cable included with all M5 Force Gauges.
*** Includes cable, driver and manual on a CD; converts RS232 to USB.
NOTE: FDIX/USB computer operation requires FDIX/CA110 and FDIX/CA-USB.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**

* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
