  MARK 10 TSF MANUAL FORCE TEST STAND
CAPACITIY: 1000 lbf / 500 kgf / 5000 N
Buy Now
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 1000 lbf /500 kgf /5000 N
  • DIGITAL FORCE & TRAVEL DISPLAY
  • PRECISION HANDWHEEL DRIVE
  • ECONOMICAL PRICE: $2100

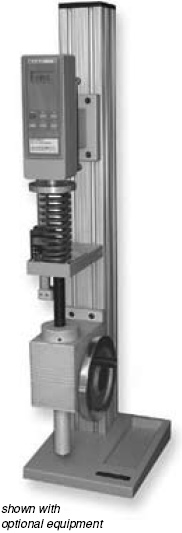

Model TSF - Manual Force Test Stand

Made in America, the TSF provides tension and compression testing to 1000 lbf / 500 kgf / 5000 N with precise handwheel and worm drive elevating mechanism for gradual repeatable force application.

Force data is displayed by a selection of digital force gauges - basic and advanced - providing computer output and many other features.

Travel data is displayed by a digital travel display with computer output.

MESURgauge force testing software provides easy set up and user friendly data logging and graphing of force vs. distance for spring testing.

CONSTRUCTION

  • Rugged and exceptionally rigid extruded aluminum column.
  • Column length of 30" [762 mm], other lengths available.
  • Removable platen with pattern of 25 #10-32 threaded holes.
  • Maximum vertical clearance: approx. 14" [356 mm] depending on gauge.
  • Maximum vertical travel 4.00" [102 mm].
  • Maximum horizontal clearance 4.35" [110 mm].
  • Travel rate: 0.013" [0.33 mm] per handwheel revolution.

OPERATION

  • Precise handwheel tension and compression testing.
  • Compression testing with 2" [51 mm] and 3" [76 mm] diameter plates.
  • Tension testing with force gauge and test stand hooks.

ACCESSORIES

  • Small, medium, and large hooks, 2" [51 mm] and 3" [76 mm] diameter compression platens, #10-32 and 5/16-18 couplings, force gauge mounting and tool kit.

WEIGHT & DIMENSIONS

  • 36 lb [16 kg].
  • 32" [813 mm] H x 8" [203 mm] W x 9.5" [241 mm] D.

MODEL DESCRIPTION PRICE
TSF Test Stand, handwheel, 1000 lbf, vertical $2100
TSFH Test Stand, handwheel, 1000 lbf, horizontal $2100
TSF001 Digital Travel Display - 6 x 0.005" [150 mm x 0.01 mm] $750
MRS100A Communication Adapter - TSF001 to PC $265

MODEL FORCE GAUGES PRICE
M5-XXX Mark 10 Digital Force Gauge 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N $1095*
M5-200 Mark 10 Digital Force Gauge 200 lbf / 100 kgf / 1000 N $1245*
M5-500 Mark 10 Digital Force Gauge 500 lbf / 250 kgf / 2500 N $1245*
09 - 1163 Cable, RS232, M5 to PC $75
09 - 1165 Cable, USB, M5 to PC - Replacement $30**
M5-1000 Digital Force Gauge 1000 lbf / 500 kgf / 5000 N $1495
09-1048A Cable, RS232, M5 to PC $75
RSU100 Cable, RS232 to USB $125***

* Refer to force gauge pages for model numbers and specifications.
** 09-1165 Cable included with all M5 Force Gauges.
*** Includes cable, driver and manual on a CD; converts RS232 to USB.
NOTE: CG1000/USB computer operation requires 09-1048A and RSU100.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**

* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
