  MARK 10 TSFM500 MOTORIZED FORCE TEST STAND
CAPACITIY: 500 lbf / 250 kgf / 2500 N
Buy Now
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 500 lbf /250 kgf /2500 N
  • DIGITAL FORCE & TRAVEL DISPLAY
  • STEPPER MOTOR DRIVE
  • CONSTANT SPEED UNDER LOAD
  • OVERLOAD PROTECTION
  • ECONOMICAL PRICE: $3150

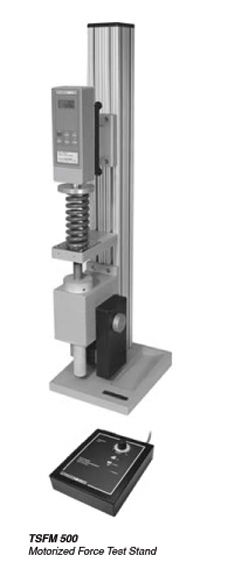

Model TSFM500 - Motorized Force Test Stand

Made in America, the TSFM 500 provides tension and compression testing to 500 lbf / 250 kgf / 2500 N with precision stepper motor preventing speed variation under load for excellent test repeatability. Force data is displayed by a selection of digital force gauges - basic and advanced - providing computer output and many other features.

OPTIONS INCLUDE:

  • Digital Travel Display - 6'' [152 mm] travel, 0.0005 [0.01 mm] resolution with computer interface for automated data collection.
  • Travel Limit Switch Kit - Set of adjustable upper and lower limit switches with solid state control, repeatable within 0.001'' [0.03 mm].
  • Force Set Point Cable - Stops travel at high and low force set points; programmable at force gauge, provides overload protection.
  • MESURgauge innovative force testing software provides easy set up and extremely user friendly data logging and graphing of force vs. distance.

CONSTRUCTION

  • Rugged and exceptionally rigid extruded aluminum column.
  • Column length of 30'' [762 mm] is standard, other lengths available.
  • Manual fine adjustment knob for set-up positioning.
  • Maximum vertical clearance: approx. 14'' [356 mm] depending on gauge.
  • Maximum vertical travel 4.00'' [102 mm].
  • Maximum horizontal clearance 4.35'' [110 mm].
  • Speed range: 0.2 - 5.5 in/min [5 - 140 mm/min].

OPERATION

  • Remote console for up/down and variable speed control.
  • Stepper motor for no speed variation under load.
  • Compression testing with 2'' [51 mm] and 3'' [76 mm] diameter plates.
  • Tension testing with small, medium and large hooks.

ACCESSORIES

  • Included: Small, medium and large hooks, 2'' [51 mm] and 3'' [76 mm] diameter compression plates, couplings, force gauge mounting and tool kit.

WEIGHT & DIMENSIONS

  • 36 lb [16.3 kg].
  • 31.5'' [800 mm] H x 7.9'' [200 mm] W x 9.4'' [240 mm] D.

MODEL DESCRIPTION PRICE
TSFM500 Motorized Test Stand - 500 lbf, vertical $3150
TSF001 Digital Travel Display - 6'' x 0.0005'' [150 mm x 0.01 mm] $750
MRS100A Communication Adapter - TSF001 to PC $265
TSFM002 Travel Limit Switch Kit - Upper/Lower $400
09-1090 Cable, Force Set Point - M5/CG to TSFM500 $145

MODEL FORCE GAUGES PRICE
M5-XXX Mark 10 Digital Force Gauge 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N $1095*
M5-200 Mark 10 Digital Force Gauge 200 lbf / 100 kgf / 1000 N $1245*
M5-500 Mark 10 Digital Force Gauge 500 lbf / 250 kgf / 2500 N $1245*
09 - 1163 Cable, RS232, M5 to PC $75
09 - 1165 Cable, USB, M5 to PC - Replacement $30**

* Refer to force gauge pages for model numbers and specifications.
** 09-1165 Cable included with all M5 Force Gauges.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
FDIX/KI Key Injector Software - PC Software Link $50**

* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc.
tsfm500_150115_dd
